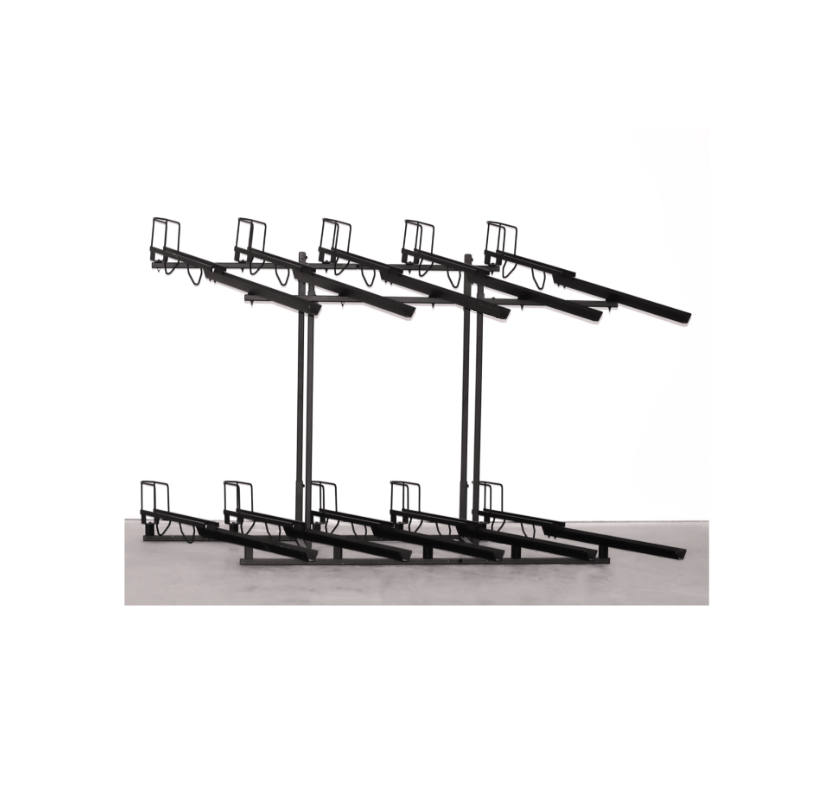

We have equipped the Straight Forward with our 66″ Super Tray. It is long and wide enough to fit 29ers. The new stanchion is tapered at the bottom and rear to ensure even the thinnest tires are held tight. Super Trays are capable of accommodating tires up to 2.75 inches wide.
A short stanchion on the Super Tray provides ample space for bikes with fenders, and a wire cam allows the bike to be held securely while being easily removed.
The rack can be assembled with trays angled 30° right or left. Bottom Tier is E-Bike Rated.
No front legs makes it easy to remove bikes and allows customers to see bikes, not the bike rack
Trays slope down on top tiers, lay flat on bottom tier
The Straight Forward is equipped with our 66″ Super Tray. It is long and wide enough to accommodate 29ers. The new stanchion is tapered on the rear and bottom to ensure that even the thinnest bike tire can be held tightly. A Super Tray can accommodate tires up to a width of 2.75″.
A short stanchion on the Super Tray provides ample space for bikes with fenders, and a wire cam allows the bike to be held securely while being easily removed.
Straight Forward Dimensions
2-Tier
8’6″ Ceiling Height Required
Bikes
Dimensions (L x D x H)
8 bikes (4 per tier)
7’4″ x 4’8″ x 5’5″
10 bikes (5 per tier)
8’9″ x 4’8″ x 5’5″
12 bikes (6 per tier)
10’5″ x 4’8″ x 5’5″
14 bikes (7 per tier)
11’9″ x 4’8″ x 5’5″
16 bikes (8 per tier)
13’5″ x 4’8″ x 5’5″
***Please allow extra space on either side of the rack for handlebars. Measurements are the footprint of the rack only.
3-Tier
14’0″ Ceiling Height Required
Bikes
Dimensions (L x D x H)
12 bikes (4 per tier)
7’4″ x 4’8″ x 9’0″
15 bikes (5 per tier)
8’9″ x 4’8″ x 9’0″
18 bikes (6 per tier)
10’5″ x 4’8″ x 9’0″
21 bikes (7 per tier)
11’9″ x 4’8″ x 9’0″
24 bikes (8 per tier)
13’5″ x 4’8″ x 9’0″
***Please allow extra space on either side of the rack for handlebars. Measurements are the footprint of the rack only.
Assembly Instructions
Download our PDF Instructions, or watch the videos below:
